TSBoats Standard Line

Standard Line

Robust hull design for durability and stability on the water

6.9m Length
2.3m Width
175HP Max Engine
1070kg Weight
12 Capacity
Exterior
Interior
Specs
Equipment
Order Now

Standard

Robust hull design for durability and stability on the water

The hull of Standard Line boats is based on a 500 mm pipe divided into three sections, 12.3 mm thick.

Boats from this series have a heavier and longer hull compared to Light Line boats. The body length of the models in this series is 5.9 – 6.9 meters, and the width is 2.3 meters.

Starting price exc. VAT
Enquire for a price
*Price included only boat
Order Now

Exterior Design

Exterior design features

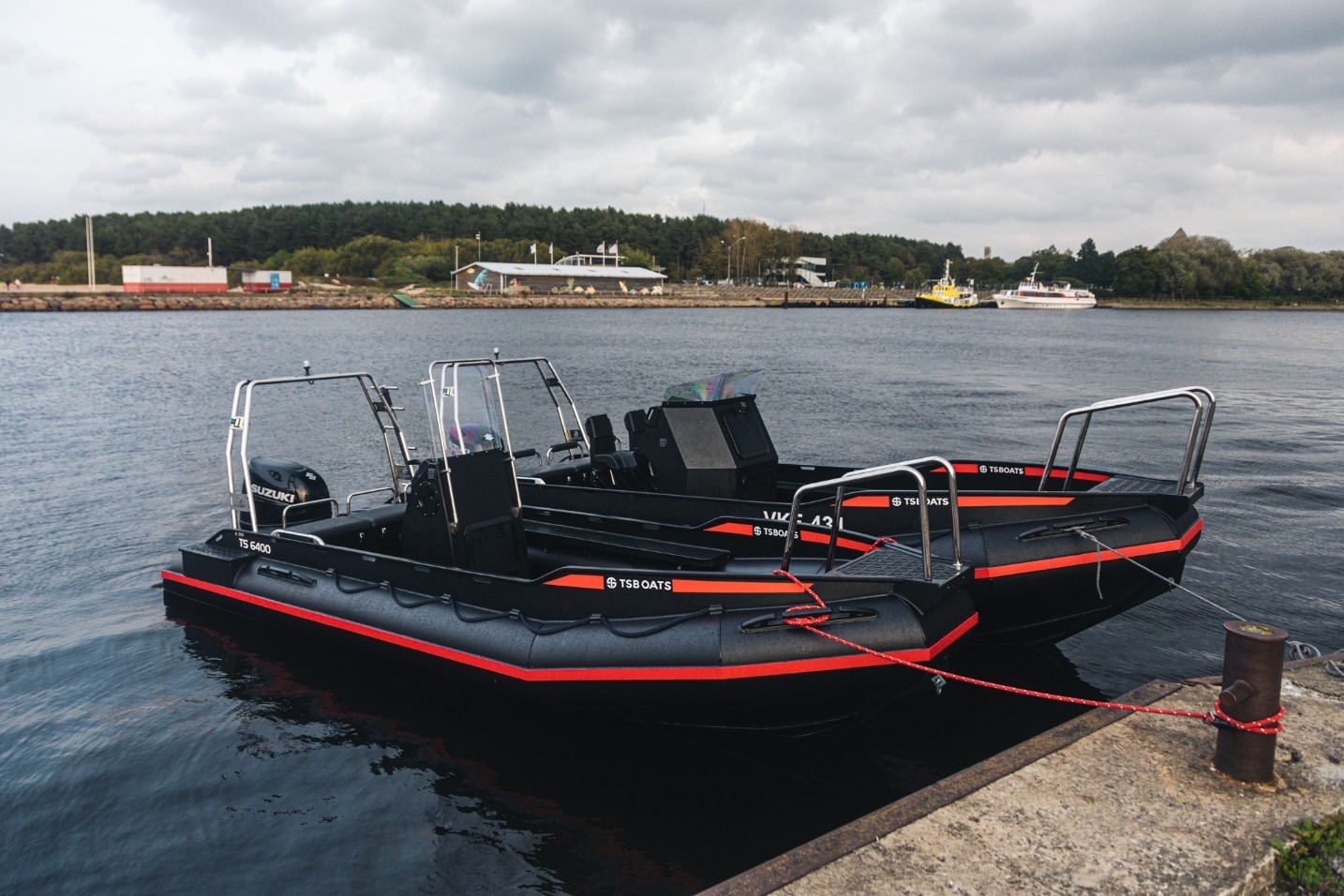

TSBoats Standard Line Boat Side View

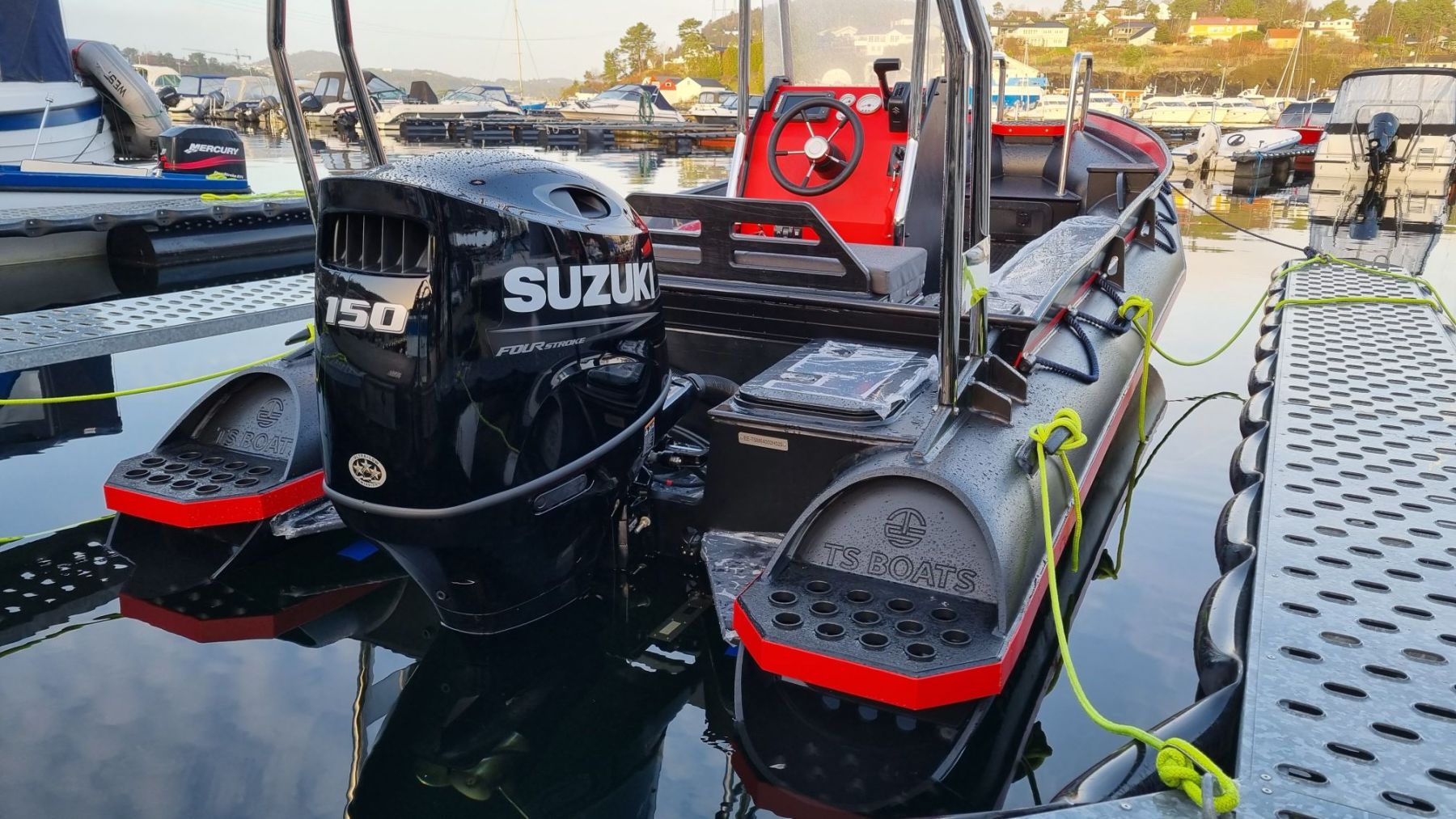

TSBoats Standard Line Boat Back View

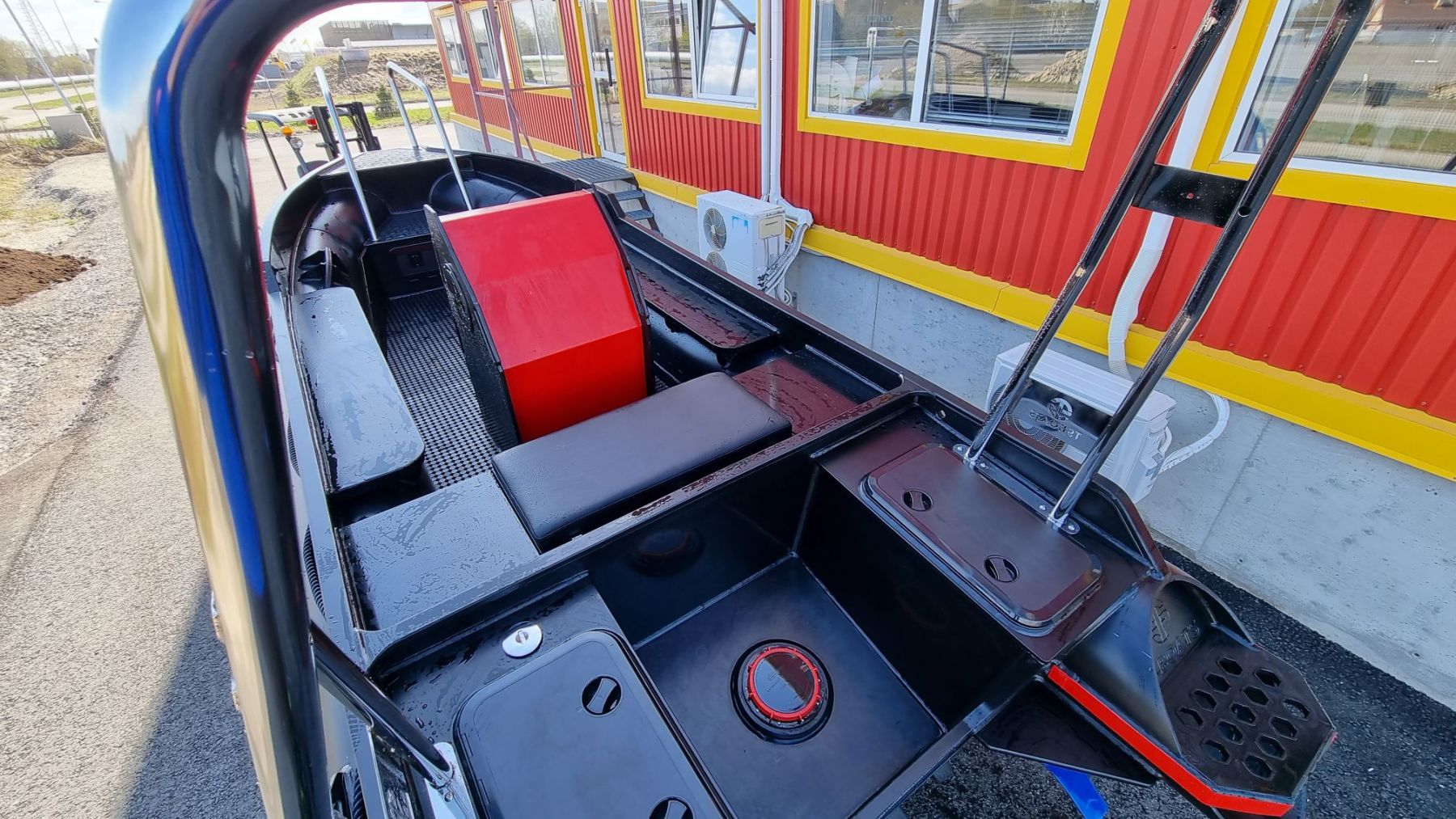

TSBoats Standard Line View

Exterior equipment

  • Hull Material HDPE (Black Colour) (All)
  • Fender 10 mm HDPE (Red Colour UV Resistant) (All)
  • Foam filling inside of the 500mm tube (All)
  • Compartments in tube structure split by bulkheads (All)
  • Self-drainage deck – 2 outlets D 50mm in transom (All)
  • Drainage plug in transom D25 mm from DB (All)
  • Tunnel in the DB for laying control systems D75mm– 2 pcs (All)
  • Towing points in AFT – 2pcs (All)
  • Inspection hatch D 190mm for Fuel tank -1 pcs (All)
  • Inspection hatch D 190mm for engine bolts installation - 1pcs (All)
  • Drainage plugs d 25 mm in technical compartments - 2 (All)
  • Drainage plug d 25 mm from Fuel compartment - 1 (All)
  • Fuel tank 130 L installed in DB -1 pcs (All)
  • Fuel inlet D 50mm in aft - 1 (All)
  • Fuel tank ventilation system (All)
  • Fuel compartment ventilation (All)
  • Reinforced transom by AL angle bar 130x65 (All)
  • Mooring places (Ducks) – 4 (All)
  • Lifting pad eyes – 4 pcs (All)
  • Storage compartment in AFT - 3pcs (All)
  • Lockers for storage hatch (Roca) - 6pcs (All)
  • Hatch holder stainless steel - 3 pcs (All)
  • Storage compartment + door in front - 1pcs (All)
  • Technical storage in AFT with hatches - 2 pcs (All)
  • Steps in AFT with anti-slip CNC method – 2 pcs (All)
  • Step platform with anti-slip CNC method – 1pcs (All)
  • Seats place on boards L 2000x 230 mm - 2pcs (All)
  • Soft seats on Aft storage compartment T:50 mm - 3 pcs (All)
  • Non-slip rubber mat on the deck (removable) (All)
  • Windshield for the console with SS railing - 1pcs (All)
  • Battery holder under the console x 2 pcs (All)
  • Manual Bilge pump from DB (35L per min) (All)
  • Safety rope around boat D18 mm (Navy Blue) (All)
  • A-frame in AFT for navigation light, etc (Stainless steel) (All)
  • Bow railings (Stainless steel) (All)
  • Fuel separator outside box (All)
  • Ultraflex Hose Through Bulkhead for hydraulic steering (All)

Interior Design

Interior design features

TSBoats Standard Line Boat Side View
TSBoats Standard Line Steering

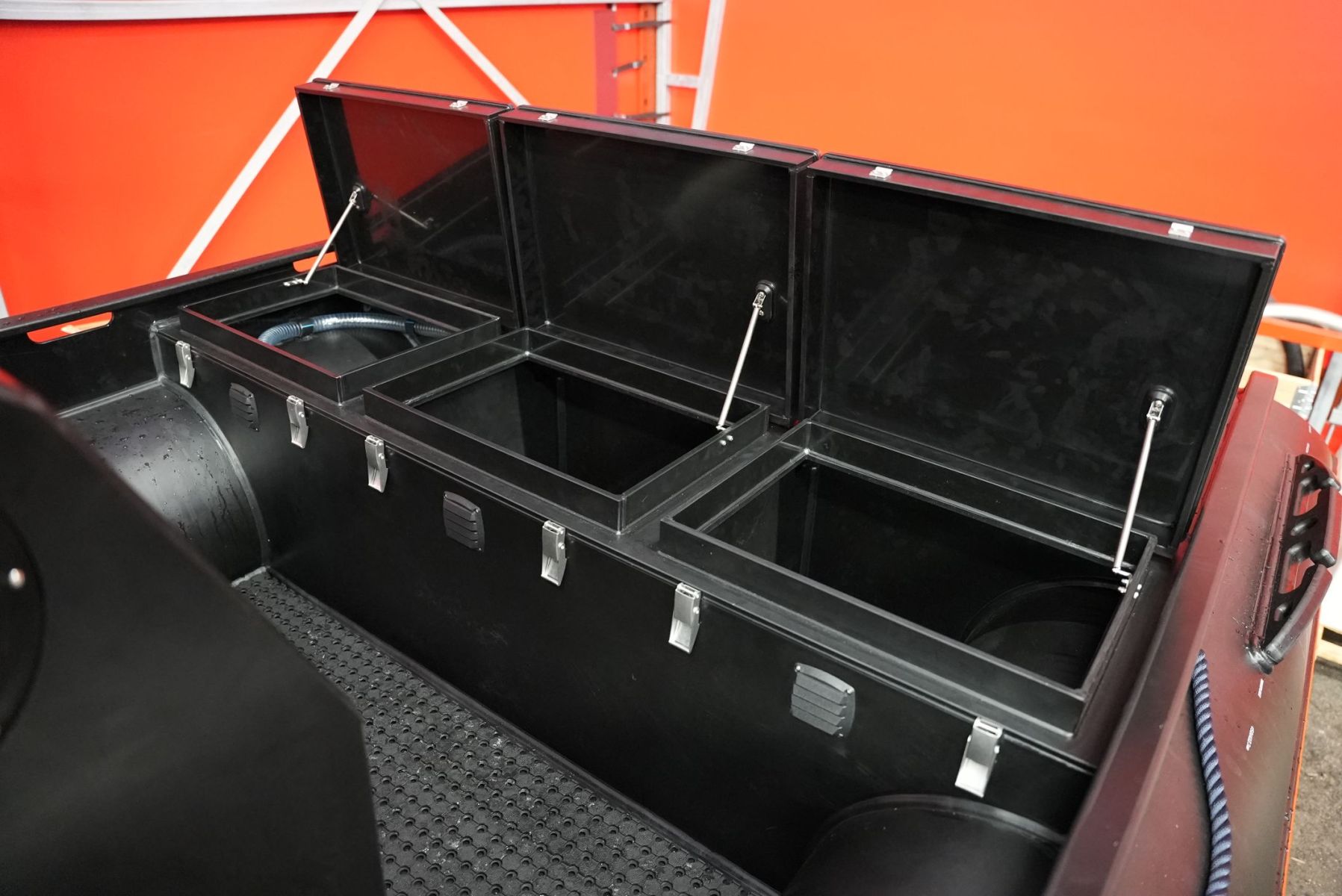

TSBoats Standard Line Storage

Interior equipment

  • Center Console + Access Hatch - 1pcs (All)

Electrical equipment

  • Main switch installed to Center console (Bluesea) -1 pcs (All)
  • Switch panel for nav. lights + reserve (total 4 pcs Bluesea) (All)
  • Navigation ligtsight (6400) (6900)
  • Top light (All)

Specs

Let's get into the details

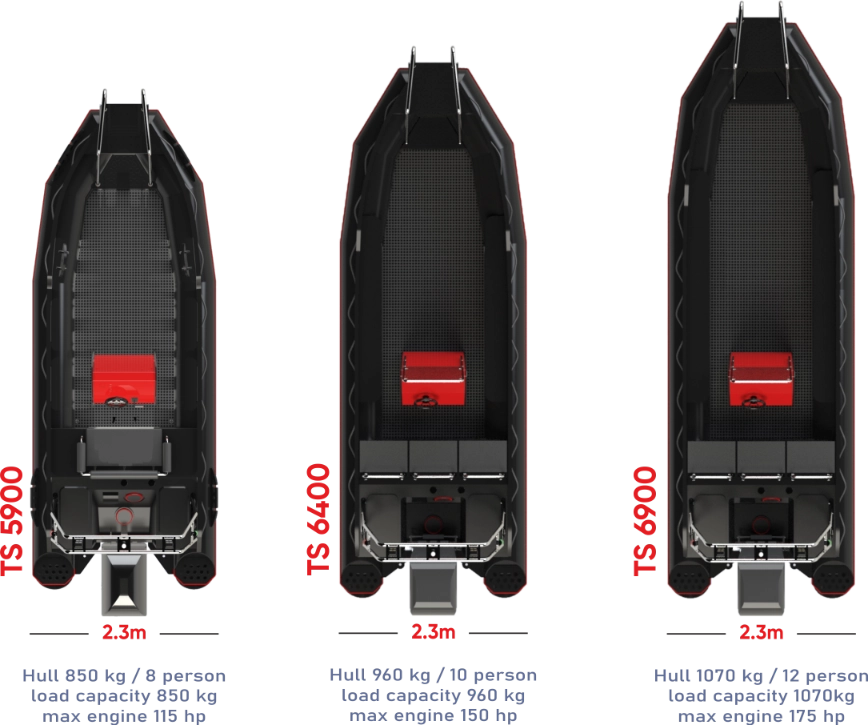

TSBoats Standard Line Boat Dimensions

Equipment

Interior, exterior and electrical

Standard equipment

Exterior equipment
  • Hull Material HDPE (Black Colour) (All)
  • Fender 10 mm HDPE (Red Colour UV Resistant) (All)
  • Foam filling inside of the 500mm tube (All)
  • Compartments in tube structure split by bulkheads (All)
  • Self-drainage deck – 2 outlets D 50mm in transom (All)
  • Drainage plug in transom D25 mm from DB (All)
  • Tunnel in the DB for laying control systems D75mm– 2 pcs (All)
  • Towing points in AFT – 2pcs (All)
  • Inspection hatch D 190mm for Fuel tank -1 pcs (All)
  • Inspection hatch D 190mm for engine bolts installation - 1pcs (All)
  • Drainage plugs d 25 mm in technical compartments - 2 (All)
  • Drainage plug d 25 mm from Fuel compartment - 1 (All)
  • Fuel tank 130 L installed in DB -1 pcs (All)
  • Fuel inlet D 50mm in aft - 1 (All)
  • Fuel tank ventilation system (All)
  • Storage compartment + door in front - 1pcs (All)
  • Non-slip rubber mat on the deck (removable) (All)
  • Centre Console + Access Hatch - 1pcs (4000)
  • Battery holder in Aft storage compartment x 1 pcs (All)
  • Manual Bilge pump from DB (35L per min) (All)
  • Safety rope around boat D18 mm (Navy Blue) (All)
  • Technical storage in AFT with hatches - 2 pcs (All)
  • Step platform with anti-slip CNC method – 1pcs (4500) (5500)
  • Storage compartment in AFT - 3pcs (4500) (5500)
  • Lockers for storage hatch (Roca) - 6pcs (4500) (5500)
  • Hatch holder stainless steel - 3 pcs (4500) (5500)
  • Soft seats on Aft storage compartment T: 50mm – 3pcs (4500) (5500)
  • Windshield for the console with SS railing - 1pcs (5500)

Optional equipment

  • Storage compartment in AFT (4000) (5500)
  • Storage box on deck 400x400 (All)
  • A-frame in AFT for navigation light, etc (Stainless steel) (All)
  • Permanently installed larger fuel tank under the deck (All)
  • Other type of console (All)
  • Fuel compartment ventilation (All)
  • Reinforced transom by AL angle bar 130x65 (All)
  • Mooring places (Ducks) – 4 (All)
  • Lifting pad eyes – 4 pcs (All)
  • Storage compartment in AFT - 3pcs (All)
  • Lockers for storage hatch (Roca) - 6pcs (All)
  • Hatch holder stainless steel - 3 pcs (All)
  • Storage compartment + door in front - 1pcs (All)
  • Technical storage in AFT with hatches - 2 pcs (All)
  • Steps in AFT with anti-slip CNC method – 2 pcs (All)
  • Step platform with anti-slip CNC method – 1pcs (All)
  • Seats place on boards L 2000x 230 mm - 2pcs (All)
  • Soft seats on Aft storage compartment T:50 mm - 3 pcs (All)
  • Non-slip rubber mat on the deck (removable) (All)
  • Windshield for the console with SS railing - 1pcs (All)
  • Battery holder under the console x 2 pcs (All)
  • Manual Bilge pump from DB (35L per min) (All)
  • Safety rope around boat D18 mm (Navy Blue) (All)
  • A-frame in AFT for navigation light, etc (Stainless steel) (All)
  • Bow railings (Stainless steel) (All)
  • Fuel separator outside box (All)
  • Ultraflex Hose Through Bulkhead for hydraulic steering (All)
Electrical equipment
  • Navigation ligtsight (6400) (6900)
  • Top light (All)
  • Main switch installed to Center console (Bluesea) -1 pcs (All)
  • Switch panel for nav. lights + reserve (total 4 pcs Bluesea) (All)

Experience Standard

Contact us for more information and the best quote
